Front Runner Chevrolet Colorado/GMC Canyon ReTrax XR 5in (2015-Current) Triple Load Bar Kit

Front Runner are legendary worldwide for their extensive range of professional grade roof racks, bed racks, load bars and accessories. An extensive range of clever and innovative add-ons are available for leisure, camping, off-road and motorhome users. Front Runner racks are designed to withstand the rigours of off-road use and overland travel.

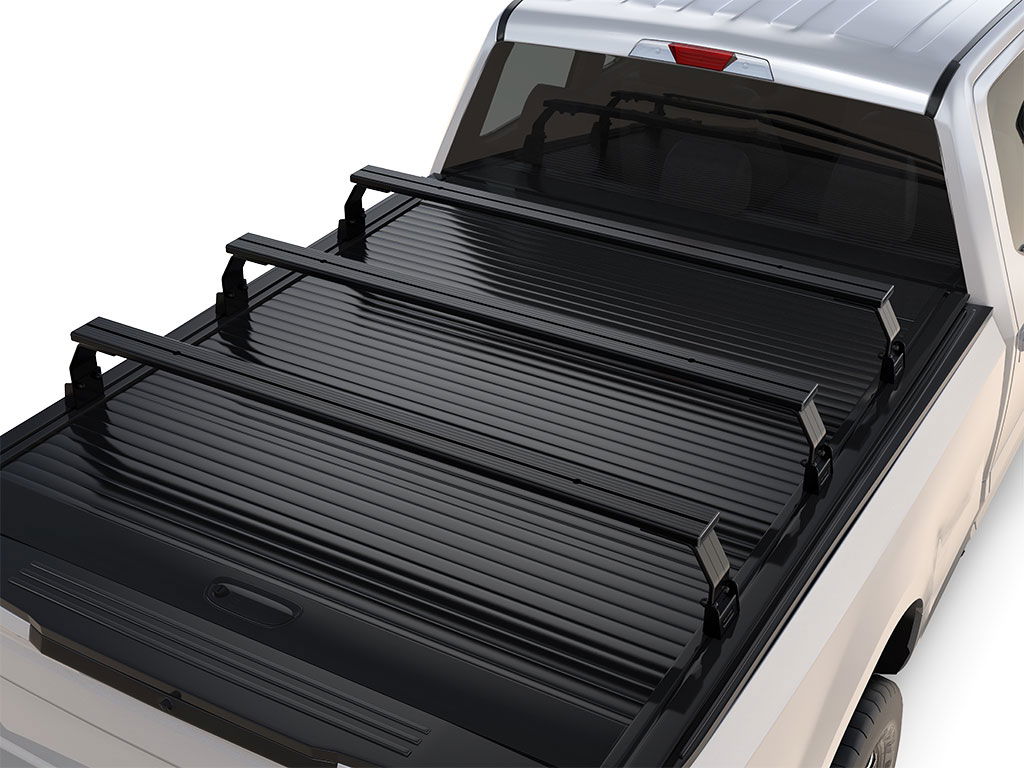

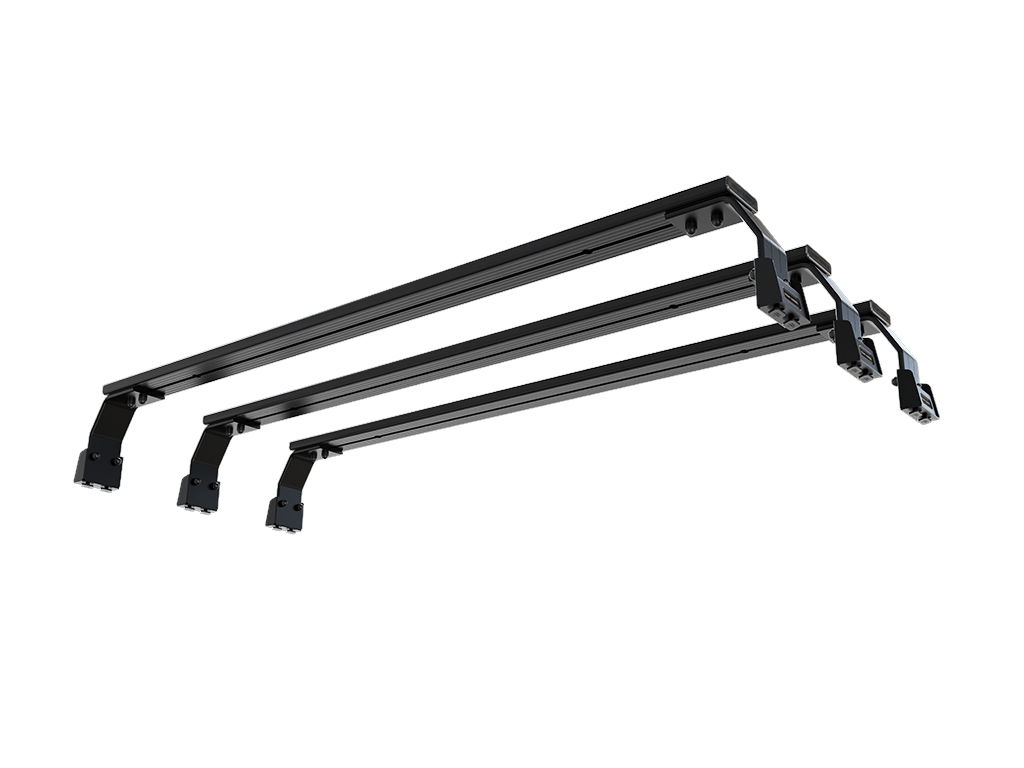

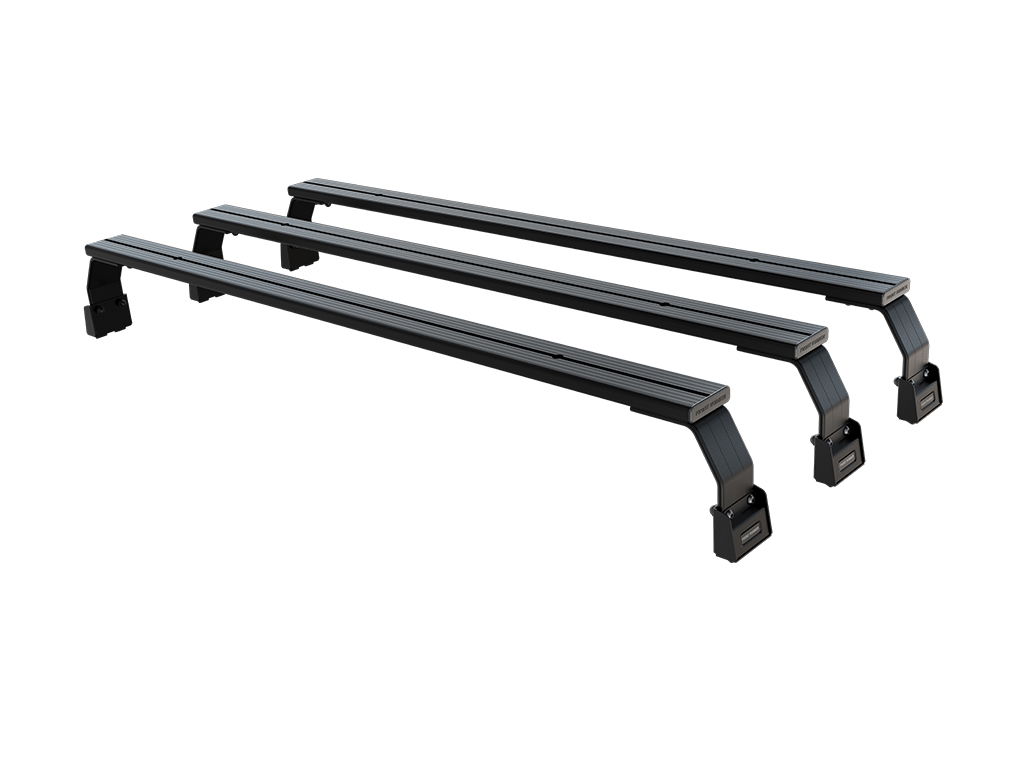

A set of Pickup Bed Load Bars used to transport gear over the bed of your Chevrolet Colorado/GMC Canyon w/ReTrax XR rails. This low profile solution includes 3 x 1425mm Load Bars and 6 Pickup Roll Top Leg Mounts that fit into the existing ReTrax XR rails.

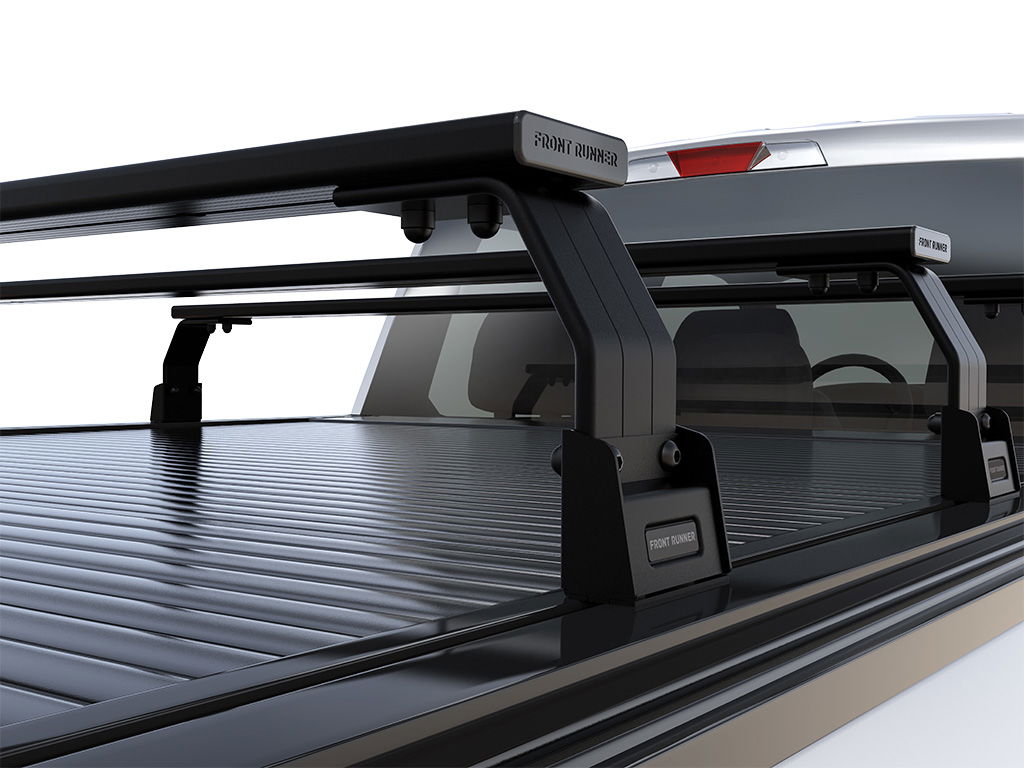

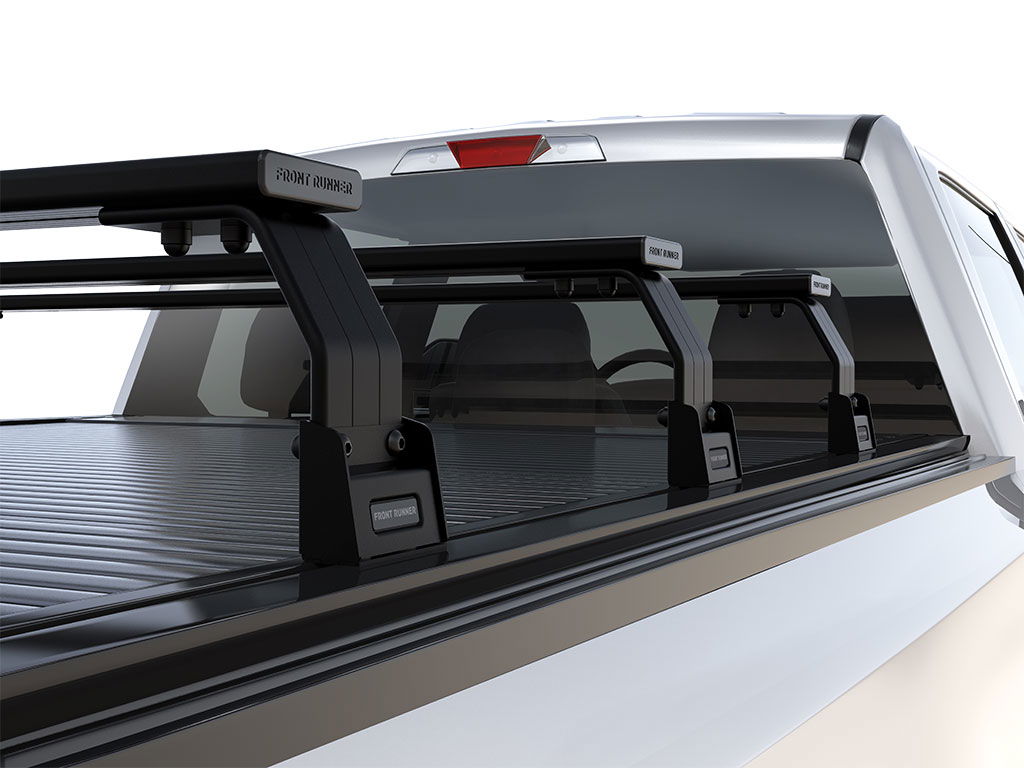

The Load Bars are mounted via Pickup Roll Top Load Mounts that bolt directly into the existing ReTrax XR rails.

Allows for gear to be mounted above the pickup’s load bed.

The load bed retains its load-carrying ability, while the drop down door functions as usual.

Uses the same strong, corrosion-free aluminum slats found in Front Runner Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

Made from steel and a durable, weather-resistant black powder coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

Note: If your Roll Top extrusion has a 6mm (0.24”) to 7mm (0.28”) slot opening, you may need RRAC962 for installation.

Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.

* Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

KRCC001 – Chevrolet Colorado/GMC Canyon ReTrax XR 5” (2015-Current) Triple Load Bar Kit – by Front Runner Consisting of: 3x LASS028 – Pick-Up Roll Top Leg Mount1x LBSK020 – Roof Load Bar Set 1425mm(W)Material Used:Black epoxy powder – coated T6 aluminiumApproximate Installed Weight: 8kg (17.64lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8”) to the height of the Foot, Grab-On Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8”) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8”) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width: 160mm (6”)Length: 1560mm (61”)Height: 230mm (9”)Shipping Weight:Weight: 12kg (26lbs)
