ICON Suspension System Dodge Ram 1503 Classic 2009-18 Stage 4 Lift Kit 0.75″ to 2.5″
£3,819.00 inc VAT
Earn 1 loyalty point per £1 spent!
ICON Suspension System Dodge Ram 1503 Classic 2009-18 Stage 4 Lift Kit 0.75″ to 2.5″
We do not ship this product to your location
£3,819.00 inc VAT
Earn 1 loyalty point per £1 spent!
Find out more about our loyalty schemeUltimate suspension systems from the famous US brand.
Brand: Icon Vehicle Dynamics (click for brand info)
Part No: K213004
Availability: Usually 2 to 4 weeks
Free UK Shipping
Credit available
Expert pre-sales advice
Contact usICON suspension systems are designed with both on-road comfort and off-road performance in mind.
Model: Dodge Ram 1503 Classic – 2009-18
Years Covered: 2009 – 2010 – 2011 – 2012 – 2013 – 2014 – 2015 – 2016 – 2017 – 2018
Complete Kit: Yes, as shown in photos
Notes:

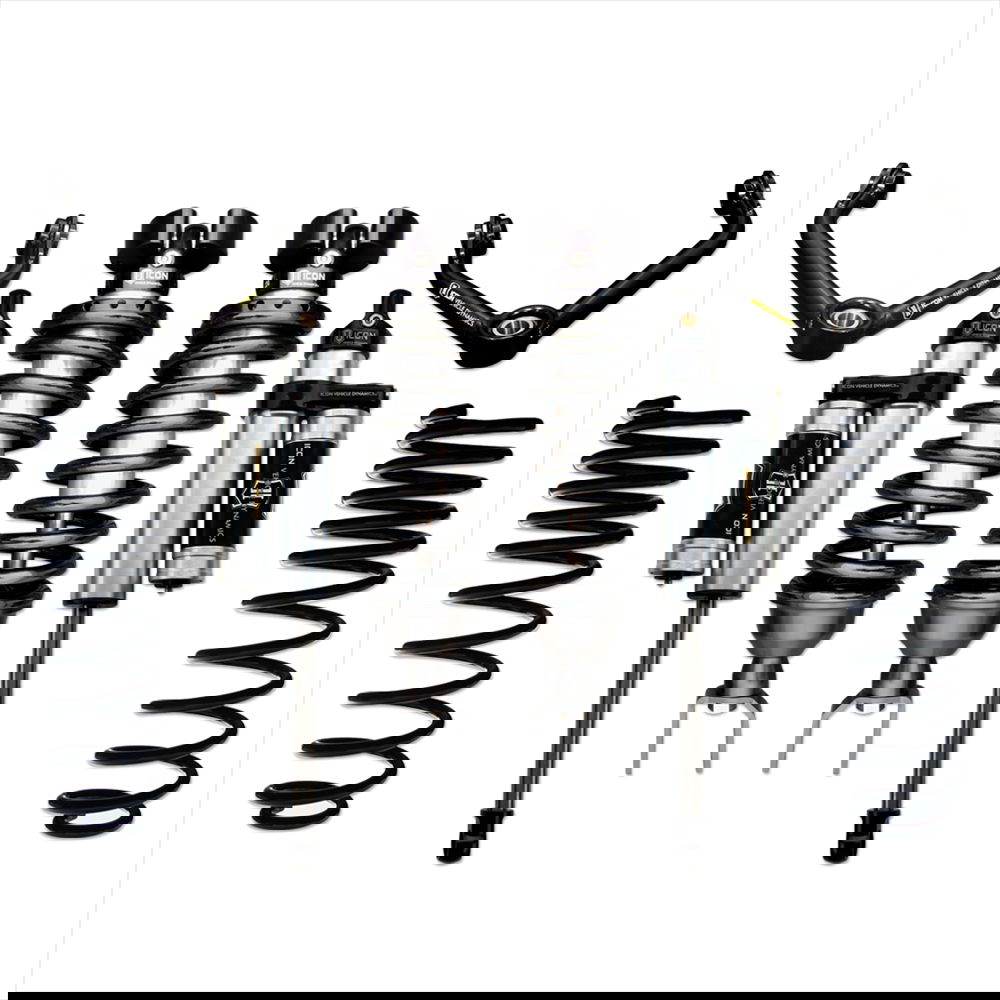

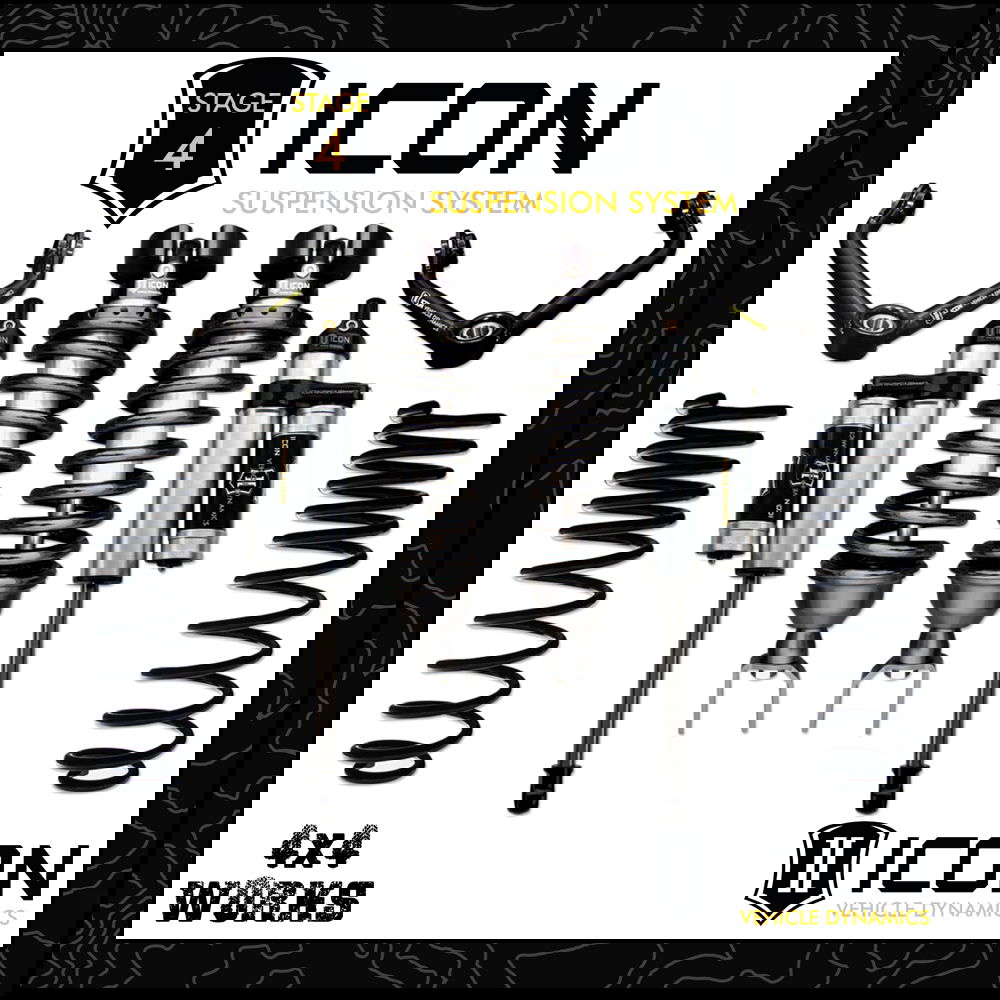

Kit Contents:
211000 (QTY: 1) | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
218550DJ (QTY: 1) | 09-UP RAM 1500 TUBULAR UCA DJ KIT
212150 (QTY: 1) | 09-UP RAM 1500 REAR 1.5″ DUAL RATE SPRING KIT
217715P (QTY: 1) | 09-18 RAM 1500 0-3″ REAR 2.5 VS PB PAIR
ICON Vehicle Dynamics are world-renowned for their ultra high quality suspension systems and wheels. Every component is developed to help you get the best out of your Dodge Ram – whether you are driving on or off road. The ICON range of suspension systems features a variety of different levels or ‘stages’ for each vehicle model, to meet different needs or performance requirements.
ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
TECH INFO
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17×8.5″ w/ 4.75” BS / 0mm Offset
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
- TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models. Lift height range is .75-2.5″ over stock
- TECH NOTE: Not compatible with models equipped with OE air suspension
- Ships in Multiple Boxes
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from .75-2.5″ of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system – no drilling, cutting, or welding necessary for install
“Why should I buy an ICON suspension package?”
All ICON suspension kits are designed to give the best possible performance. There are so many differences compared to lesser brands and kits, from the quality of the materials used to the time and effort that goes into developing and testing, ICON packages represent the highest levels of performance and comfort for your 4WD or pickup.
“Is specialist installation required?”
No, most ICON kits can be installed with standard tools and installation is a straighforward task. Always seek professional installation if needed.
“Will this kit raise the vehicle?”
Many ICON kits are height adjustable and most kits will raise the vehicle, this is fully covered in the product description.
“Is this kit suitable for road use?”
Yes, this ICON kit is suitable for day to day road use, and the comfort and handling are excellent. This kit also designed for off road users who demand the best comfort, handling and durability.
“Are ICON struts supplied pre-assembled?”
ICON struts are supplied pre-assembled if the photos on the product page show them as being pre-assembled.
“Can you help me to select the right ICON kit for my needs?”
Yes, our staff are fully product trained and can help you to find the right package for your needs.
