ICON Suspension System Ford F Series F-150 Lightning 2022-on Lowering Coilovers -2.0″ to 0″
£2,779.00 inc VAT
Earn 1 loyalty point per £1 spent!
ICON Suspension System Ford F Series F-150 Lightning 2022-on Lowering Coilovers -2.0″ to 0″
We do not ship this product to your location
£2,779.00 inc VAT
Earn 1 loyalty point per £1 spent!
Find out more about our loyalty schemeUltimate suspension systems from the famous US brand.
Brand: Icon Vehicle Dynamics (click for brand info)
Part No: 91831E
Availability: Usually 2 to 4 weeks
Free UK Shipping
Credit available
Expert pre-sales advice
Contact usICON suspension systems are designed with both on-road comfort and off-road performance in mind.
Model: Ford F Series F-150 Lightning – 2022-on
Years Covered: 2022 – 2023 – 2024 – 2025
Complete Kit: Yes, as shown in photos
Notes:
Kit Contents:

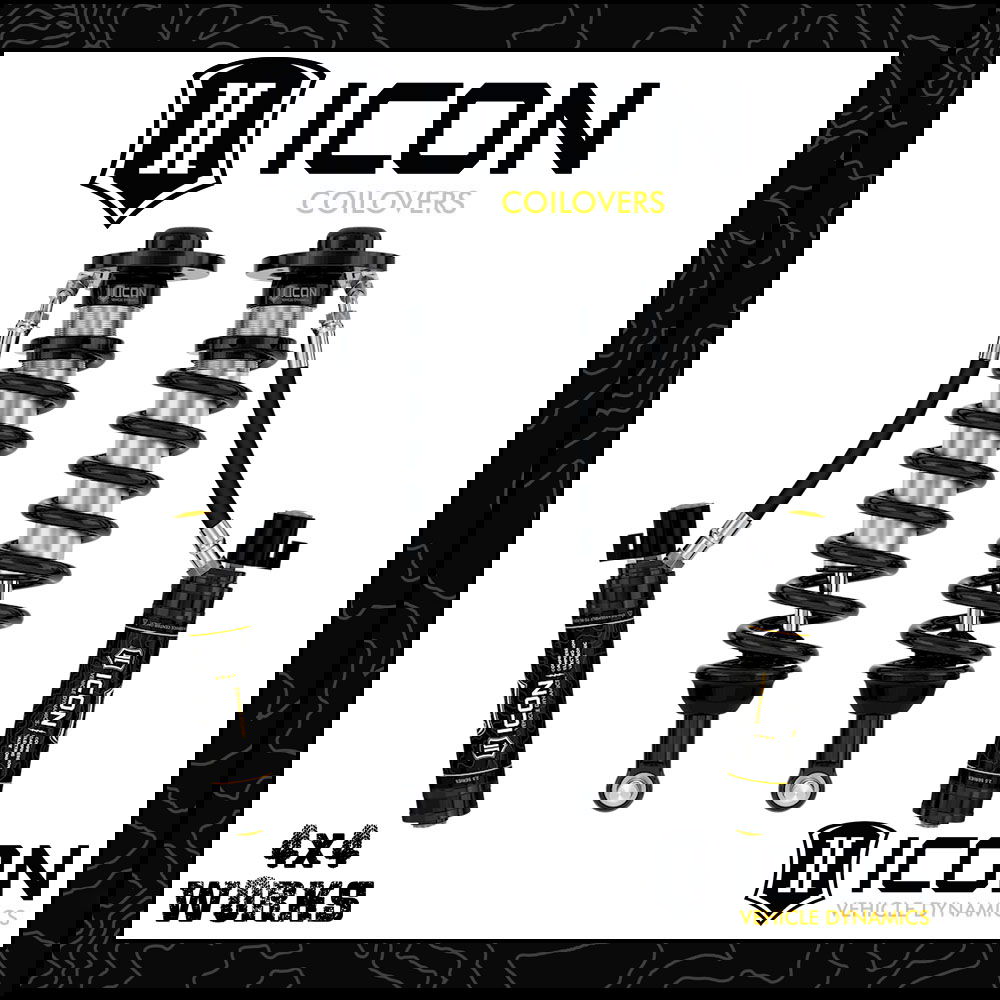

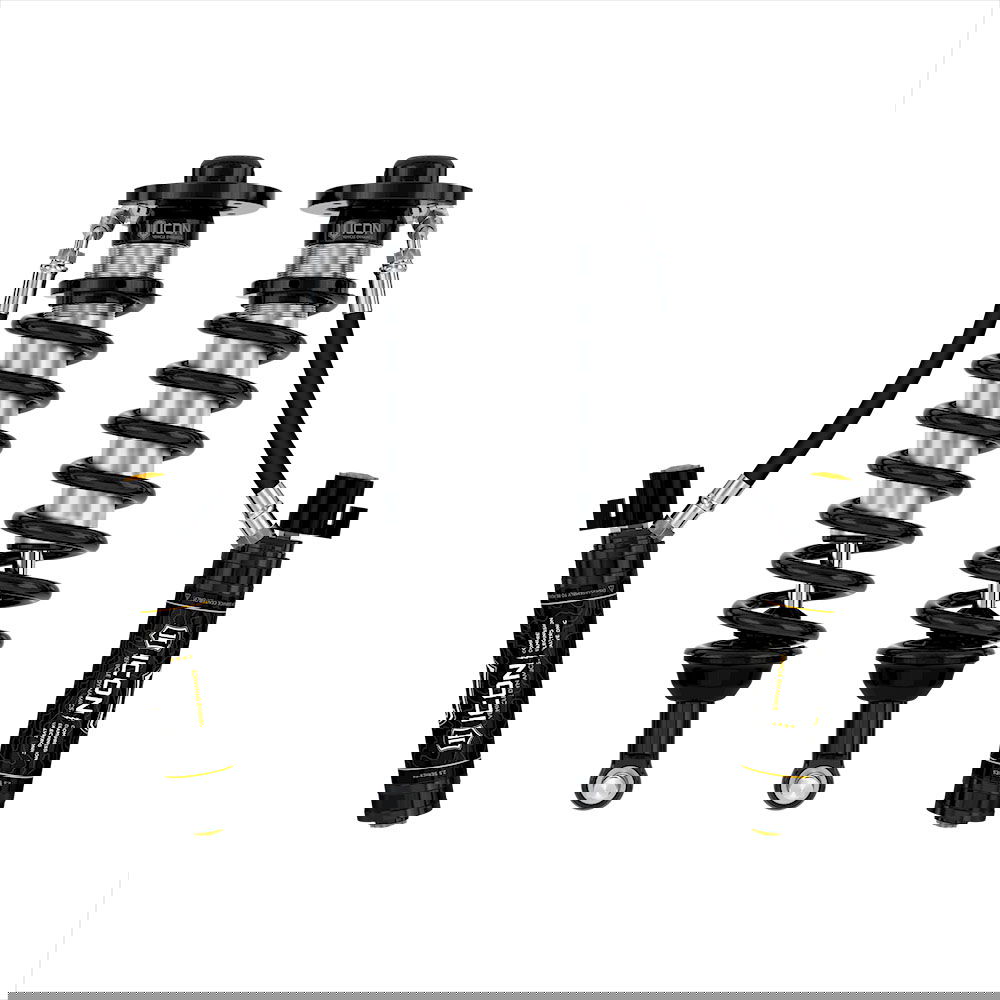

FRONT 2.5 VS RR CDEV COILOVER KIT
ICON Vehicle Dynamics are world-renowned for their ultra high quality suspension systems and wheels. Every component is developed to help you get the best out of your Ford F Series – whether you are driving on or off road. The ICON range of suspension systems features a variety of different levels or ‘stages’ for each vehicle model, to meet different needs or performance requirements.
Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-on Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable front lowered height range of 0-2″ under stock. With ICON’s vehicle specific shock length, valving, and the larger 2.5″ shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.
Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.
Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV rear coilovers, your vehicle’s control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.
TECH INFO
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 20×9″ w/ 6” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 33″ x 12.00″ (Larger tires may fit but fender trimming and modifications may be required)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LOWERED HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- TECH NOTE: Also requires installation of IIC kit (Part # 93501) and CDEV rear coilovers (Part # 91836E)
- Height-adjustable coilovers offer 0-2″ of lowered height adjustment
- Vehicle specific tuned front shocks for superior shock damping and vehicle control
- ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Remote reservoir to maintain cooler operating temperatures and house CDE Valves
- Increased compression travel compared to stock
- ICON engineered coil springs with opmized spring rates for improved ride quality
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
- High strength alloy CNC machined lower bar pins
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on – no cutting or welding necessary for installation
“Why should I buy an ICON suspension package?”
All ICON suspension kits are designed to give the best possible performance. There are so many differences compared to lesser brands and kits, from the quality of the materials used to the time and effort that goes into developing and testing, ICON packages represent the highest levels of performance and comfort for your 4WD or pickup.
“Is specialist installation required?”
No, most ICON kits can be installed with standard tools and installation is a straighforward task. Always seek professional installation if needed.
“Will this kit raise the vehicle?”
Many ICON kits are height adjustable and most kits will raise the vehicle, this is fully covered in the product description.
“Is this kit suitable for road use?”
Yes, this ICON kit is suitable for day to day road use, and the comfort and handling are excellent. This kit also designed for off road users who demand the best comfort, handling and durability.
“Are ICON struts supplied pre-assembled?”
ICON struts are supplied pre-assembled if the photos on the product page show them as being pre-assembled.
“Can you help me to select the right ICON kit for my needs?”
Yes, our staff are fully product trained and can help you to find the right package for your needs.
