ICON Suspension System Jeep Wrangler JK JKU 2007-18 Stage 4 Lift Kit 3″
£3,859.00 inc VAT
Earn 1 loyalty point per £1 spent!
ICON Suspension System Jeep Wrangler JK JKU 2007-18 Stage 4 Lift Kit 3″
We do not ship this product to your location
£3,859.00 inc VAT
Earn 1 loyalty point per £1 spent!
Find out more about our loyalty schemeUltimate suspension systems from the famous US brand.
Brand: Icon Vehicle Dynamics (click for brand info)
Part No: K22004
Availability: Usually 2 to 4 weeks
Free UK Shipping
Credit available
Expert pre-sales advice
Contact usICON suspension systems are designed with both on-road comfort and off-road performance in mind.
Model: Jeep Wrangler JK JKU – 2007-18
Years Covered: 2007 – 2008 – 2009 – 2010 – 2011 – 2012 – 2013 – 2014 – 2015 – 2016 – 2017 – 2018

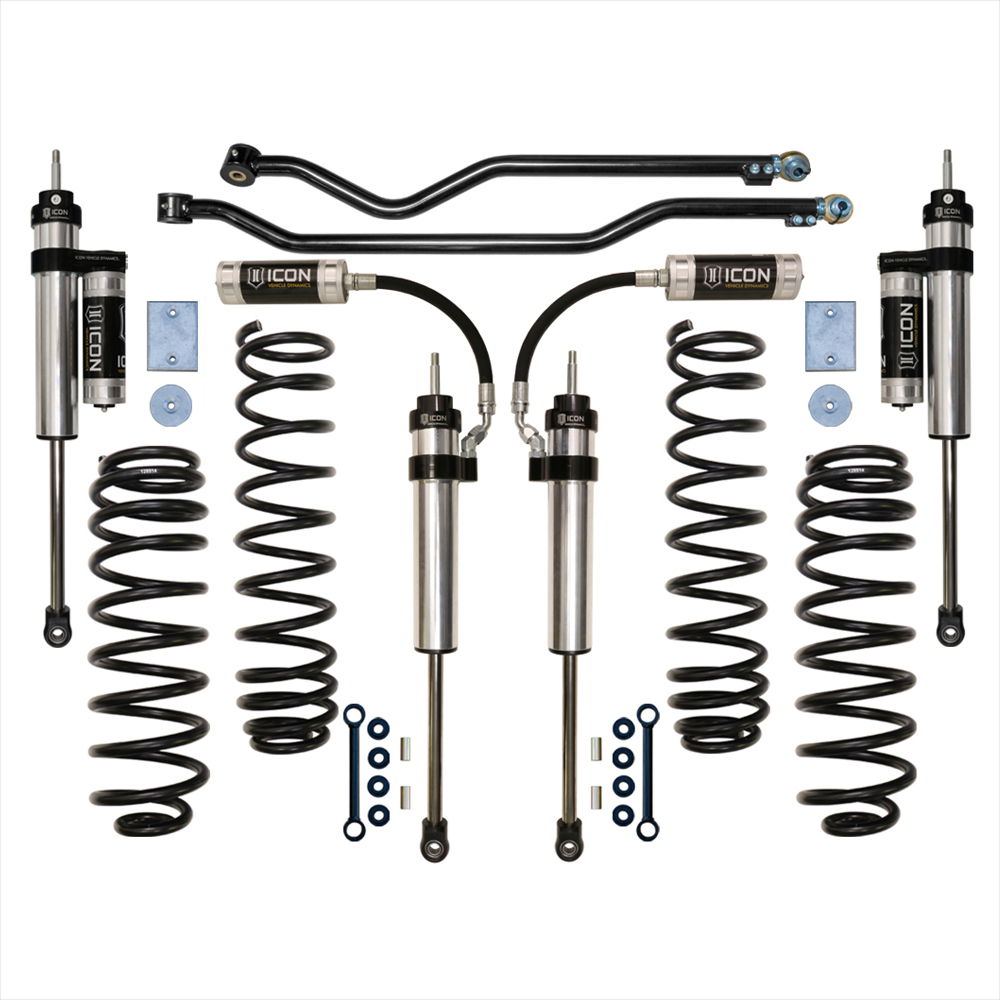

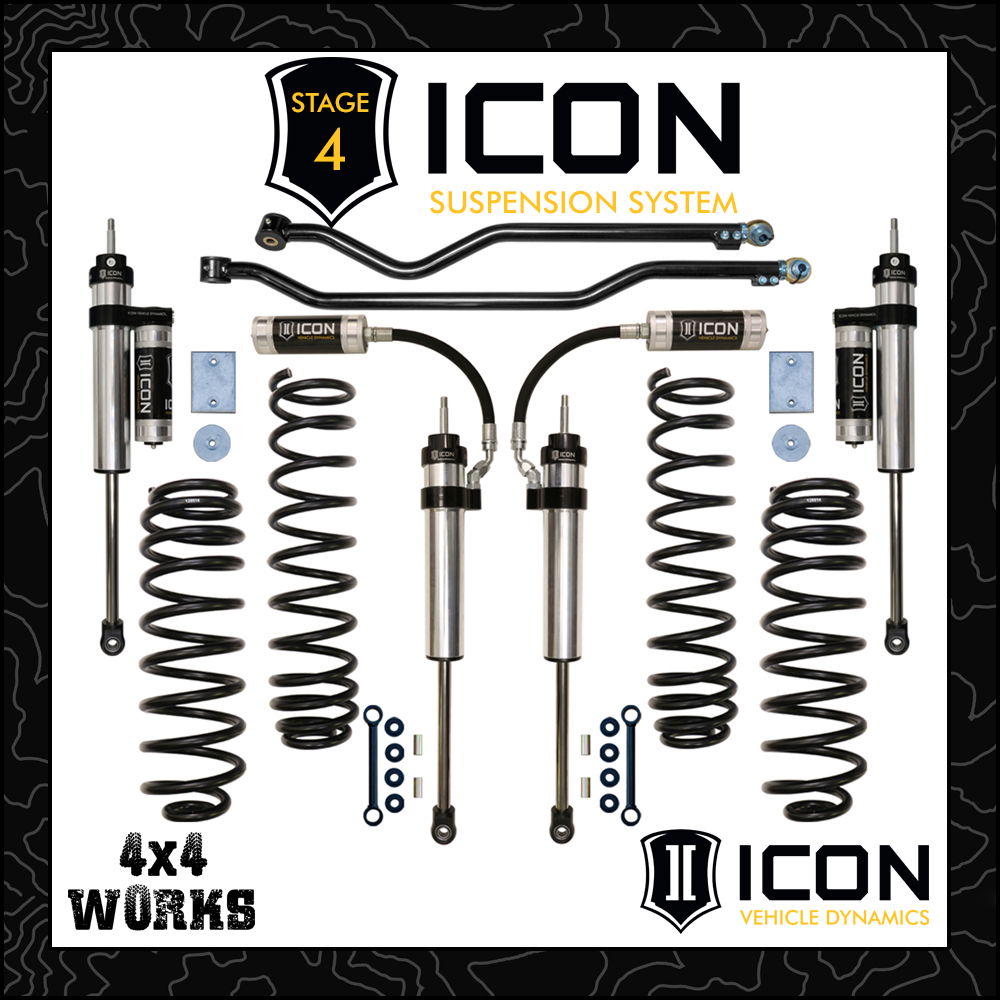

Complete Kit: Yes, as shown in photos
Notes: Fits LEFT HAND DRIVE models only
Kit Contents:
22010 (QTY: 1) | 07-18 JK FRONT 3″ DUAL RATE SPRING KIT
22015 (QTY: 1) | 07-18 JK REAR 2″ DUAL RATE SPRING KIT
22040 (QTY: 1) | 07-18 JK 3″ FRONT/REAR BOX KIT
21020 (QTY: 1) | 07-18 JK FRONT ADJ TRACK BAR KIT
21025 (QTY: 1) | 07-18 JK REAR ADJ TRACK BAR KIT
27820P (QTY: 1) | 07-18 JK 3″ FRONT 2.5 VS RR PAIR
27725P (QTY: 1) | 07-18 JK 3″ REAR 2.5 VS PB PAIR
ICON Vehicle Dynamics are world-renowned for their ultra high quality suspension systems and wheels. Every component is developed to help you get the best out of your Jeep Wrangler – whether you are driving on or off road. The ICON range of suspension systems features a variety of different levels or ‘stages’ for each vehicle model, to meet different needs or performance requirements.
The ICON Vehicle Dynamics 3″ Lift Suspension System is designed for Jeep JK owner’s demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today’s market. ICON’s Jeep Wrangler JK 3″ lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON 2.5 Aluminum Series Reservoir shocks are included front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Together the combination of ICON dual rate coils and 2.5 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 4 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. This ICON 3″ JK lift system is designed from the ground up to give the Jeep Wrangler JK’s the best performance, suspension handling / ride quality, and clearance for 33″ tall tires (35″ tall with installation of aftermarket high-clearance fenders).
TECH INFO
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17×8.5″ w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18×9″ w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger 35″ tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
- APPLICATION NOTE #63: 2012-UP JK MODELS REQUIRE THE USE OF ICON PART #22011 EXHAUST EXTENSION SPACER OR AFTERMARKET DRIVESHAFT PART #22014
- APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
- APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
- APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- Ships in Multiple Boxes
- Dual Rate Coil Springs Front and Rear
- Adds 30% More Wheel Travel over Stock
- Vehicle can be Returned Back to Stock
- No Welding or Cutting
- Includes High Performance Rebuildable / Revalvable Reservoir 2.5 Aluminum Series Shocks
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders
- Out Articulates Most Long Arm Kits of Comparable Height
- Includes Adjustable Track Bars for Optimized Axle Positioning
- Pan Rod Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness
- Lifetime Guarantee that Coil Springs Won’t Sag
“Why should I buy an ICON suspension package?”
All ICON suspension kits are designed to give the best possible performance. There are so many differences compared to lesser brands and kits, from the quality of the materials used to the time and effort that goes into developing and testing, ICON packages represent the highest levels of performance and comfort for your 4WD or pickup.
“Is specialist installation required?”
No, most ICON kits can be installed with standard tools and installation is a straighforward task. Always seek professional installation if needed.
“Will this kit raise the vehicle?”
Many ICON kits are height adjustable and most kits will raise the vehicle, this is fully covered in the product description.
“Is this kit suitable for road use?”
Yes, this ICON kit is suitable for day to day road use, and the comfort and handling are excellent. This kit also designed for off road users who demand the best comfort, handling and durability.
“Are ICON struts supplied pre-assembled?”
ICON struts are supplied pre-assembled if the photos on the product page show them as being pre-assembled.
“Can you help me to select the right ICON kit for my needs?”
Yes, our staff are fully product trained and can help you to find the right package for your needs.
This item ships for free within the UK. Shipping charges may apply to other locations.
