MAD Automotive EasyLoad Van Loading Crane Hoist System with Powered Trolley Renault Master Panel Van 2010-on
from £4,995.00 inc VAT
Choose your options to earn 1 point per £1 spent!
MAD Automotive EasyLoad Van Loading Crane Hoist System with Powered Trolley Renault Master Panel Van 2010-on
We do not ship this product to your location
from £4,995.00 inc VAT
Choose your options to earn 1 point per £1 spent!
Find out more about our loyalty schemeHeavy duty vehicle loading cranes with electronic controls
Brand: MAD Automotive (click for brand info)
Availability: Usually in UK stock
Free UK Shipping
Credit available
Expert pre-sales advice
Contact usMAD Automotive loading cranes are designed to fit many popular vans, lorries and trailers, for fuss-free easy loading and unloading.
Model: Renault Master Panel Van – 2010-on
Voltage: 12v
SWL: 250kg or 500kg
Weight (EasyLoad 250): Crane – 100kg, mounting frame – 60kg
Weight (EasyLoad 500): Crane – 125kg, mounting frame – 75kg
Cantilever Length: 1150mm
Extended Length: 3675mm or 3875mm (depending on vehicle model)
Retracted Length: 1900mm or 2275mm (depending on vehicle model)
Lifting Speed: 6m/min
Safety Rating: CE NEN –EN-14492-2
Notes: Installation location is in Warwickshire, UK; fitting normally takes half to one day
With so many vans and lorries on the roads, it might seem that loading and unloading would not represent a significant issue. After all, most large freight depots and warehouse operations have fork lifts and staff on hand. However, there are many situations and scenarios where fork lift or assisted loading and unloading are not available. Whilst some delivery options can necessitate having a second person in the vehicle, this is costly and inefficient.

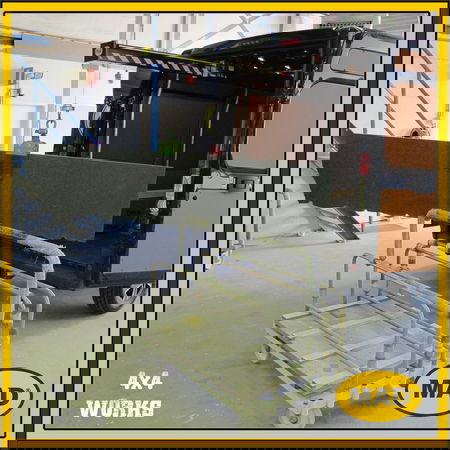

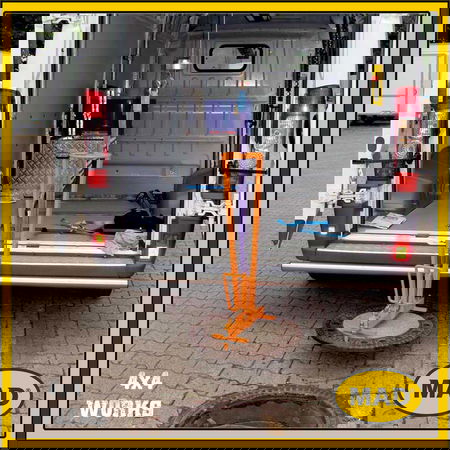

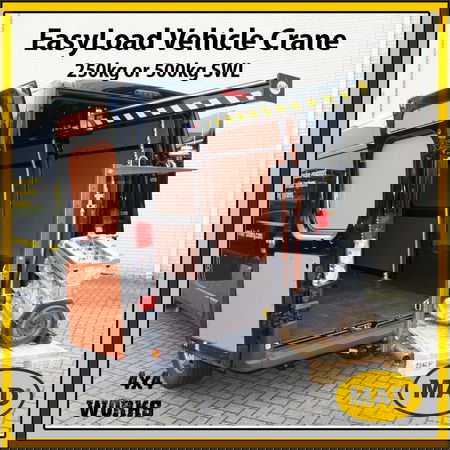

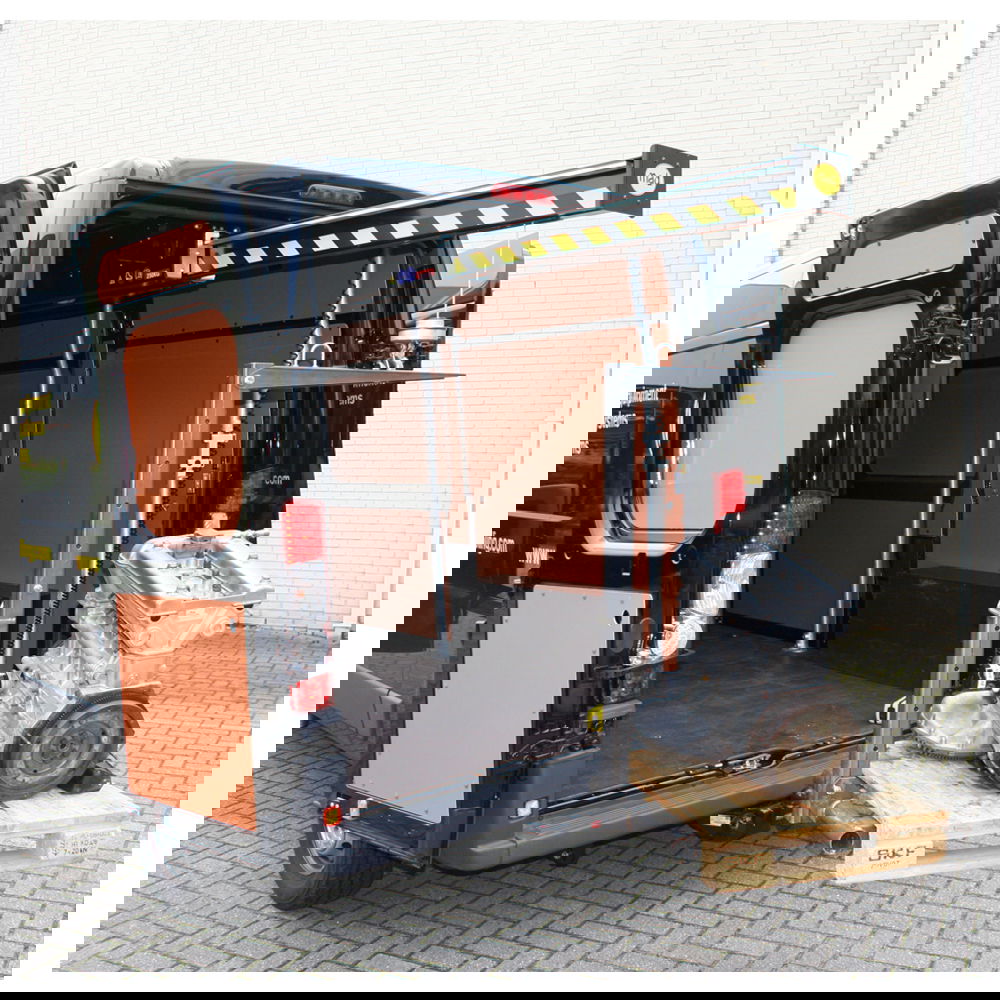

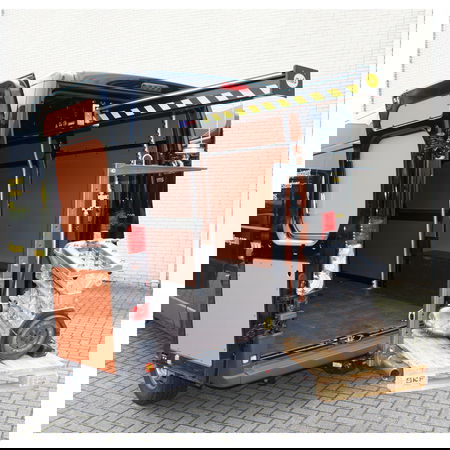

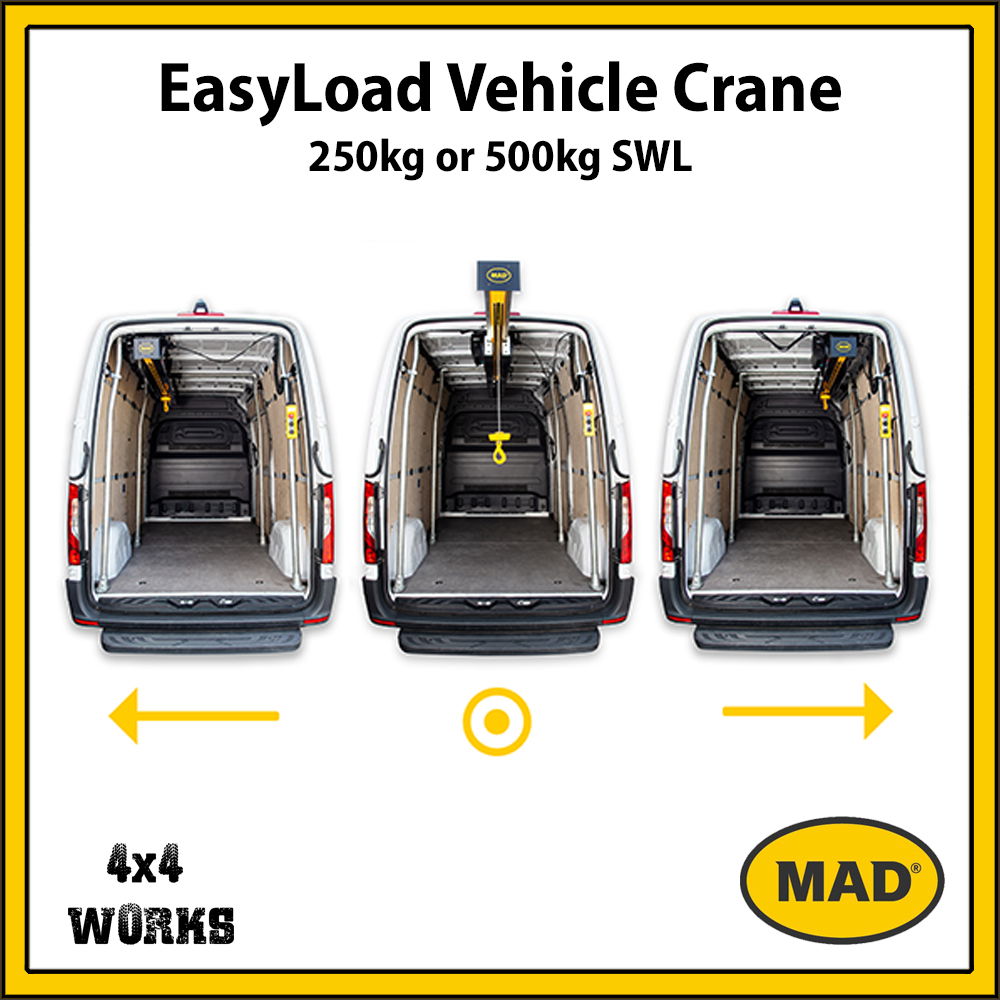

MAD, a well-established European handling specialist, launched the EasyLoad range to address this problem. EasyLoad vehicle cranes are roof-mounted inside a van or trailer, with their own purpose-designed support frame. The cranes are light-weight and do not take up any floor space in the vehicle, and they are capable of lifting and lowering a wide range of freight from the ground to the load bed. EasyLoad cranes can be extended and retracted with the supplied electronic controller, which also controls lifting and lowering functions. For ease of loading, the crane can even be manually moved to the left or right side of the load area. A variety of attachments and harnesses are available separately to suit different handling needs.
EasyLoad is a clever and high quality solution to your loading issues; you will wonder how you ever managed without it.
- Powered from the vehicle battery
- Remote control included
- UK installation included (additional charges apply to some models)
- One person operation
- Durable construction
- Easy, professional installation
- 12 month warranty
“Will the EasyLoad crane fit into any vehicle?”
A wide range of vehicle models are covered, but a minimum of 1.9m of internal roof length is required for fitment.
“Is specialist installation required?”
Installation of the EasyLoad is recommended, but we can supply the product without fitting if required; please note that some cutting and customisation is required if self-installing.
“Is the support frame mandatory?”
Yes, this is required for almost all van installations. Lorries and trailers require a different type of frame and costs may vary depending on model.
“Do any vehicle models have installation constraints?”
Yes, any vans where the rear doors are lower than the roof require the crane to be mounted lower so as to clear the door opening.
“Can the EasyLoad be operated by just one person?”
Yes it can easily and safely be operated by just one person.
